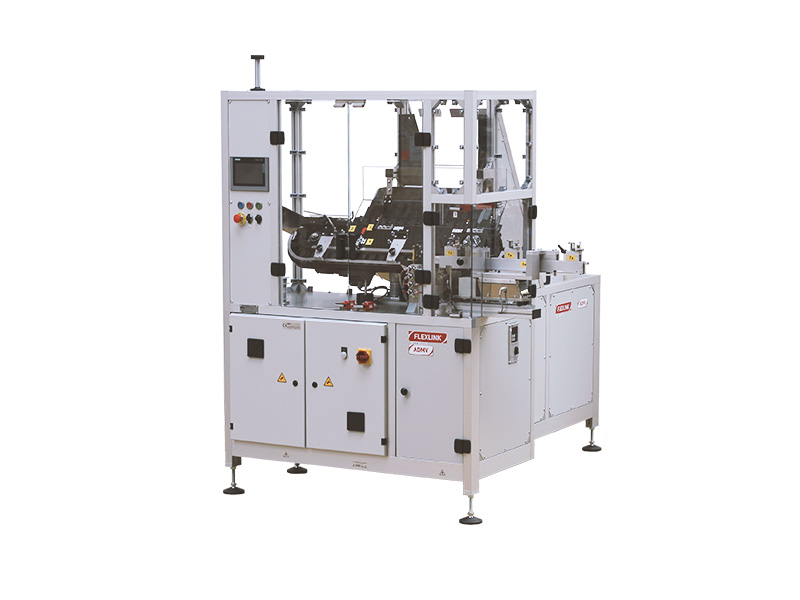

ADMV BF 60-120

Flexible blade feeding system with easy and quick changeover (120 ppm)

Basic Info

  • TECHNOLOGY: Feeding
  • INDUSTRY: Personal Care, Industrial Goods
  • SEGMENT: Cosmetics, Construction Components, Other Industrial Goods, Other Personal Care

Detailed Info

Footprint
Machine depth (mm)1775
Machine height (mm)1820
Machine length (mm)1630
Machine weight (kg)500
More Information
Other infoThis well proven equipement can run from 60 to 120 ppm. It feed brushes for mascara form bulk, and sort them on a outfeed rail. Diameter range for the brush : 13 mm to 22 mm and from 55 mm to 150 mm length. Main advantages: High outfeed rate. Easy changeover, based on a color coding. Low maintenance. Compact equipment. Built in hopper. Option for electrical heigh adjustment of the machine.
Packing range
Max pack diameter (mm)22
Product range
Max product height (mm)178
Min product height (mm)81
Product features
Product orientationBrush fed in a vertical positioin cap up
Performance
Max speed (m/min)120
Other technical features
Transport systemBelt conveyor
Motion systemAsynchronous drives
Technical data
Capacity (dm3)65
Connections
Max air pressure (bar)6
Power (kW)1
Production environment
Operating Noise Level (dB)75
