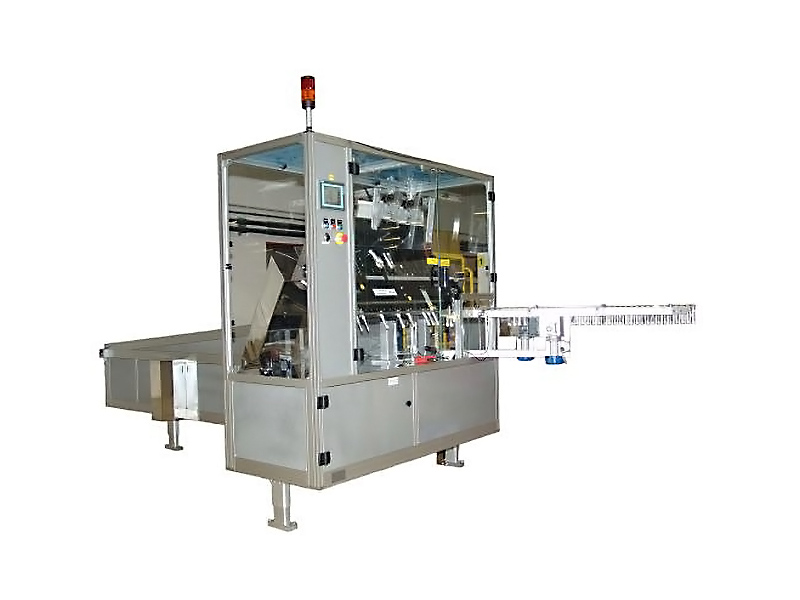

ADMV VF80-120

Aerosol valve feeder for Bag-On-Valve products (120 ppm)

Basic Info

  • TECHNOLOGY: Feeding
  • INDUSTRY: Home Care, Personal Care, Chemicals, Industrial Goods
  • SEGMENT: Home Insecticides, Cosmetics, Deodorants, Fragrances, Hair Care, Men's Shaving, Skin & Sun Care, Other Personal Care, Other Chemicals, Other Industrial Goods
CONTACT US
AFTER SALES SERVICE

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)3800
Machine height (mm)1900
Machine length (mm)1810
Machine weight (kg)900
More Information
Other infoThis feeder can sort from bulk BOV valves. This feeder preserves the integrity of the component, it can accept valves up to 32.5 mm diameter, with a bag length from 100 mm to 150 mm, and without bag a tube length up to 210 mm. Easy changeover with color coding. Low maintenance. The machine can be electrically adjusted for the height out feed. Hopper up to 300 L capacity. Easy and ergonomic loading of the machine.
Packing range
Max pack diameter (mm)32
Product range
Max product length (mm)160
Performance
Max speed (m/min)120
Technical data
Capacity (dm3)300
Connections
Max air pressure (bar)6
Other technical features
Motion systemAsynchronous drives
